Retaining wall failure is rarely sudden or random. It is typically driven by hidden pressures, poor drainage, design shortcomings or gradual ground movement that develops over time. On projects involving retaining walls in Mornington Peninsula, these risks are often intensified by sloping terrain, variable soil profiles and ongoing moisture fluctuations. Failure is rarely caused by a single issue and more often results from the interaction of structural loads, water pressure, site conditions and construction decisions.
JBS Excavation & Retaining Walls examines the primary causes of retaining wall failure, outlines the warning signs that indicate early movement and highlights the design and construction factors required to achieve long-term structural performance.

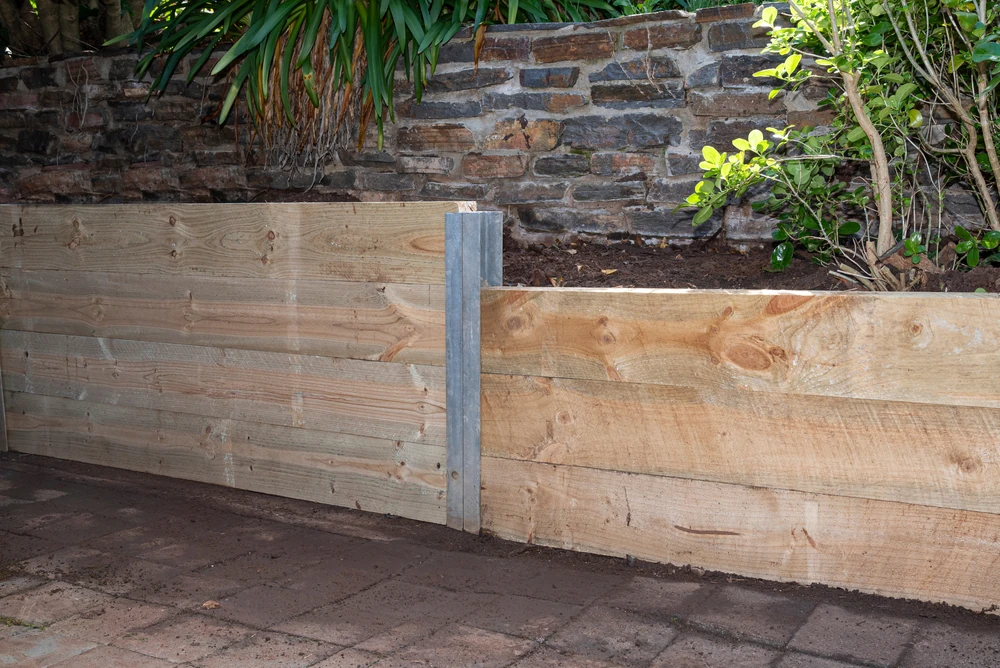

A retaining wall is not just a decorative boundary. It is an engineered structure built to hold back soil that would otherwise slump or slide, especially on sloping ground. When it fails to resist the forces acting on it, the result is bulging, cracking, tilting or complete collapse.
Understanding exactly what a retaining wall is meant to resist explains why failures occur. Each force needs to be anticipated and accounted for in the design, footings, drainage and construction methods. When any one of these forces is underestimated, the wall is at risk.
The primary job of a retaining wall is to resist lateral earth pressure. Soil behind the wall is constantly trying to move outward and downward under its own weight. The steeper and higher the retained soil, the greater this pressure. Design must consider:
For example, clay soils can exert very high pressure when wet. If a wall is built as if it is only holding back a garden bed, but is actually retaining a full bank, the lateral loads can quickly exceed its capacity. Proper engineering predicts the expected earth pressure and sizes the wall thickness, footing and reinforcement to safely resist it.
.webp)
Water is often the hidden driver of retaining wall failure. A saturated backfill becomes heavier and also builds up hydrostatic pressure that pushes directly on the back of the wall. A correctly designed wall is built to resist the added weight of wet soil and hydrostatic pressure from trapped water. To control these forces, the design typically includes:
If water cannot drain freely, pressure increases rapidly during heavy rain. Even a structurally strong wall can bow or lean if hydrostatic pressure is not accounted for.
Retaining walls often carry more than just soil. Extra loads at the top of the wall are known as “surcharge loads” and they increase the horizontal forces on the structure. Common surcharge loads are:
A wall designed only for soil but later exposed to vehicle traffic or built structures above it can become overstressed. In addition to vertical weight surcharges, increase the lateral pressure that must be resisted by the footing and reinforcement.
Poor drainage is one of the most common and most serious causes of retaining wall failure. When water is not given a controlled path to escape from behind the wall, it builds up as hydrostatic pressure. This added force pushes directly on the wall structure, often exceeding what it was designed to handle.
Controlling water is just as important as choosing the right wall materials. Even a perfectly engineered wall can lean, crack or collapse if water collects behind it. Good drainage design focuses on keeping water away from the wall where possible and giving any unavoidable water an easy way out.
Soil naturally holds moisture. After heavy rain or irrigation, that moisture increases and the soil becomes heavier. If water cannot drain freely, it fills the voids in the soil and creates hydrostatic pressure that acts like a constant outward push on the wall.
This pressure is greatest near the base of the wall, where soil depth and water accumulation are highest. Signs that pressure is rising include bulging in the lower courses of blocks, wet or stained sections of wall and water seeping through joints instead of through a controlled outlet.
Clay soils and poorly compacted backfill are especially vulnerable, as they retain water longer. Sloping sites that direct surface water towards the wall also increase the risk of pressure buildup if drainage is not properly designed.
Several predictable errors are behind most drainage-related wall failures:
When these mistakes occur water stays trapped. Over time, freeze-thaw cycles can worsen the situation. Water in saturated soil expands when frozen which can push the wall out incrementally each winter.

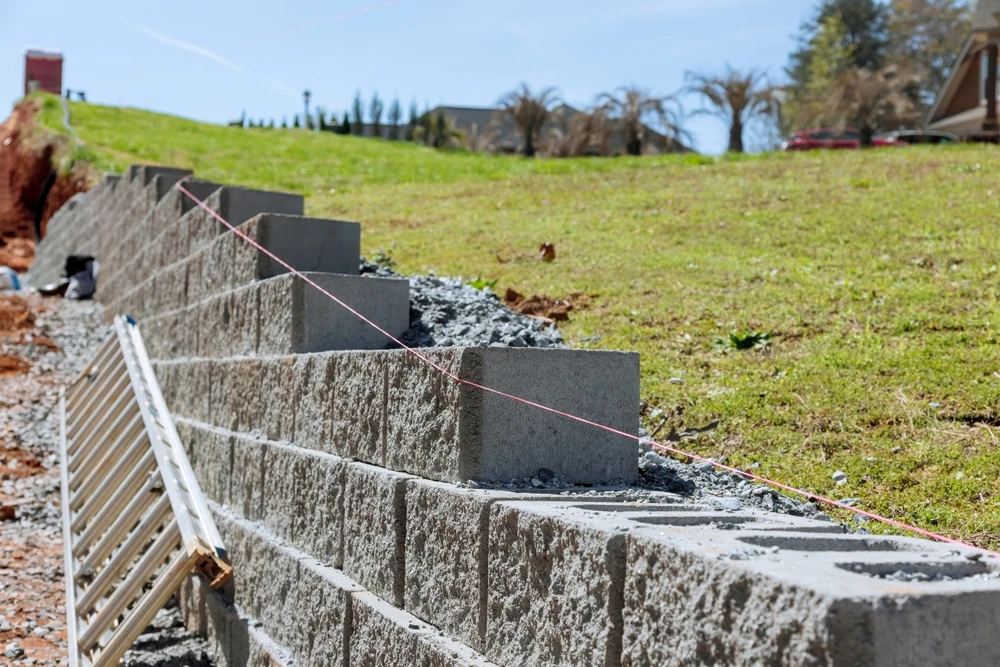

Good drainage design starts before construction. The backfill zone directly behind the wall should typically be a clean, free-draining aggregate such as crushed rock rather than the site’s native soil. A perforated drain pipe is usually placed at the base of the wall on a slight grade so water can flow to a suitable discharge point.
Filter fabric is commonly used to separate the drainage stone from the surrounding soil. This prevents fines from washing into the rock and blocking voids that allow water to move. On some walls, especially higher or solid-faced systems, weep holes are incorporated through the wall to relieve pressure.
Surface water management is equally important. Grading the ground so that it falls away from the top of the wall reduces the volume of water reaching the backfill. In some cases, additional surface drains or swales are required to divert roof runoff or hillside flows away from the structure.
Weak or poorly designed footings are one of the most common causes of retaining wall failure. Even a wall built with quality materials will not perform if the base is unstable or the surrounding site has not been correctly prepared. Problems usually appear as movement at the bottom of the wall then progress into cracking, bulging or tilting.
Sound footings and thoughtful site preparation ensure that the wall can handle the weight of the retained soil and the water that moves through it. When these fundamentals are ignored, the wall starts to shift almost as soon as the ground settles or becomes saturated.
A footing that is too shallow or too narrow cannot resist the forces pushing on a retaining wall. In many soils the footing must be placed below the depth where seasonal moisture changes and minor ground movement occur. If it sits too close to the surface, the base can soften in wet weather or dry out and shrink, which leads to uneven settlement and rotation of the wall.
Footing width and thickness must match the wall height, soil type and expected load. Undersized concrete strips, crushed rock bases or sleeper posts often lead to:
Insufficient reinforcement in a concrete footing adds to the risk. Steel bars or posts that are too small, too widely spaced or poorly embedded reduce the footing’s ability to spread loads into stable ground.
Even a correctly sized footing will fail if the ground beneath it is not suitable or properly compacted. Footings placed on fill that has not been compacted in thin layers will compress under the weight of the wall. This settlement is rarely uniform, so one section drops more than another, which twists and cracks the structure.
Soft clays, loose sands or organic soils are particularly problematic. If unsuitable material is not removed and replaced with compacted granular fill or if geotechnical advice is ignored, the wall is likely to move. Proper site preparation typically involves:
Skipping these steps to save time or cost almost always shows up later as movement at the base line of the wall.
Many retaining wall failures can be traced back to decisions made long before any soil movement is visible. Inadequate design, the wrong choice of materials and poor construction practices all reduce a wall’s ability to resist the forces from the ground it is holding back. Eventually, these weaknesses show up as tilting, cracking, bulging or complete collapse.
A structurally sound retaining wall must be designed for the specific site conditions, then built with suitable materials and correct detailing. If any one of these elements is neglected, even a new wall can start failing within a few seasons of heavy rain.
Retaining walls must be engineered to handle the weight of the soil behind them, changes in moisture, surcharge loads such as vehicles or buildings and local soil conditions. A common cause of failure is using generic “rule of thumb” dimensions instead of a proper design. Problems that arise from poor design are:
Ignoring soil type is another design issue. Reactive clays, soft fills or poorly compacted backfill can exert far higher pressures than assumed. If the design is based on ideal conditions, the wall may be overstressed as soon as the ground becomes saturated.
The choice of materials must match both the design and the site environment. Using materials that are not rated or suitable for structural retaining work is a frequent cause of early deterioration. Typical material-related issues include:
Correct backfill is as important as the wall itself. Free-draining granular material behind the wall reduces hydrostatic pressure and works with the drainage system. If excavated clay is simply pushed back against the wall, the risk of future movement and water build-up is much higher.
Even a well-designed wall with quality materials can fail if it is not built correctly. Construction shortcuts or lack of attention to detail often show up as differential settlement, cracking at joints and gradual leaning. Common construction errors are:
Adhering strictly to design specifications, manufacturer installation guides and recognised construction standards is critical. Site supervision and quality checks at footing, reinforcement and backfill stages reduce the risk of long-term retaining wall failure.
Retaining walls do not fail only because of poor construction. The ground around and behind the wall is constantly moving and changing. Soil settlement, expanding clays, growing tree roots and unexpected extra loads all increase pressure on the structure. When these factors are not properly considered in design or change after construction, the wall can lean, crack or collapse.
Understanding how movement and loading affect a retaining wall helps identify early warning signs and avoid simple mistakes that dramatically reduce the life of the wall. Good design is not just about what the wall looks like on day one but also how the surrounding ground will behave for many years.
Ground movement is one of the most common hidden causes of retaining wall problems. Soils shrink and swell with changes in moisture. Reactive clays expand when wet and contract when dry which can cause cyclical heaving and settlement behind the wall. This repeated movement pushes the wall forward or causes sections to drop and crack.
Poorly compacted backfill is another issue. If the soil placed behind the wall is loose or contains organic material it will settle unevenly. This settlement can increase pressure in some areas and create voids in others which undermines footing support. Sloping sites are particularly vulnerable as gravity encourages slow creep of soil downhill which continuously loads the wall.
Tree roots seek out moisture and can extend well beyond the tree canopy. Large roots can physically displace soil and push directly on the back of the wall or its footing. Fine roots can infiltrate drainage zones and eventually block them, which traps water behind the wall and greatly increases pressure.
Planting large trees or vigorous shrubs close to a retaining wall raises the risk of future movement. As the tree matures, the expanding root system can lift sections of footing or create localised bulges and cracking. Removing a large tree near an existing wall can also cause problems because the soil, which was previously stabilised by roots, may slump as the roots decay.
Retaining walls are designed for a specific surcharge load behind and above them. When additional weight is added later, such as driveways, parked vehicles, pools, sheds or even deep garden beds, the pressure on the wall can exceed its design capacity. The result is often forward rotation, bulging or sudden failure during heavy rain when the soil is already saturated.
Placing heavy structures close to the top of a wall without engineering input is a frequent and avoidable cause of damage. Any change to the use of the area above or behind a wall, such as converting lawn to parking or adding a water tank, should be assessed to ensure the wall can safely carry the new load.
Recognising the early warning signs of retaining wall failure helps prevent minor issues from becoming costly structural problems. Many failures start small and develop gradually, so regular visual checks are essential, especially after heavy rain or noticeable ground movement.
Any change in alignment, cracking or movement of the wall or the soil around it should be treated seriously. Prompt investigation by a qualified contractor or engineer can often save the wall or at least reduce the scope of repair.
One of the clearest signs of trouble is when the wall is no longer vertical. Leaning often indicates that the pressure from the retained soil and water is greater than the wall was designed to handle. A failing wall may lean forward at the top, bulge outward in one section and show a stepped or bowed profile when viewed from the side.
Even a slight lean that appears to be getting worse over weeks or months is a concern. Marking the wall with a pencil line or taking reference photos at intervals can help track movement. Any sudden shift after a storm or construction activity nearby calls for immediate assessment.
Cracks are common, but not all cracks are harmless. The location pattern and size of the cracks provide important clues.
Horizontal cracks running along the length of the wall are often more serious than thin hairline vertical cracks because they usually relate to soil pressure issues. Diagonal cracks near the ends of the wall or around corners can indicate rotation or sliding at the base. Gaps opening between blocks, timbers or concrete segments suggest that the wall is stretching or individual units are being pushed out.
Loose or displaced blocks, shifting timbers or missing mortar also show that the wall is no longer acting as a single solid structure. In timber walls, rotting or soft sections, especially near the base, pose an increased risk of failure.
A failing retaining wall can look like a simple structural problem that only needs bracing, patching or rebuilding. In reality, the visible damage is usually a symptom of a deeper issue such as water pressure, poor drainage or inadequate footing design. Repairing the damage without understanding the root cause almost guarantees that the problem will return and often more severely.
A correct diagnosis protects both safety and investment. Identifying precisely why a wall is moving, cracking or bowing informs the right repair method, the correct materials and whether the existing structure can be partially saved or must be replaced.
If a wall is rebuilt without addressing the original cause, it will often fail again in the same way. For example, a wall that has leant forward because of hydrostatic pressure might be straightened and reinforced, but if the drainage system behind it is still clogged or undersized, the new work will be pushed out again. Common underlying causes that must be confirmed before repairs include:
Each of these requires a different solution. Drainage issues may call for weep holes and free‑draining backfill. Foundation problems may require deeper footings or soil replacement. Without a clear diagnosis, any repair is largely guesswork and more likely to fail.
Not all retaining wall problems need full replacement. Some can be stabilised and retained if the cause is properly understood. Accurate identification of the failure mechanism determines whether:
For instance, minor cracking from surface movement may be treated with local reinforcement and waterproofing. In contrast, cracking combined with bulging often points to deeper soil pressure or footing rotation that calls for more extensive structural work.
Retaining wall failure is typically the result of identifiable and preventable issues rather than unpredictable events. Structural problems such as cracking, leaning, bulging or collapse are most often linked to inadequate drainage, poor footing design, unsuitable materials, weak construction practices or changing site conditions. Hydrostatic pressure, poorly compacted or inappropriate backfill and unaccounted surcharge loads all contribute to increasing stress on the wall over time. Early warning signs often appear before a major failure occurs, providing an opportunity for corrective action. Long-term performance depends on correctly aligning design, materials and construction methods with site-specific conditions, supported by effective drainage and ongoing maintenance.
